Introduction

This is an updated article of the original post - http://pevma.blogspot.se/2014/03/suricata-and-grand-slam-of-open-source.html

This article covers the new (at the time of this writing) 1.4.0 Logstash release.

This is Chapter IV of a series of 4 articles aiming at giving a general guideline on how to deploy the Open Source Suricata IDPS on a high speed networks (10Gbps) in IDS mode using AF_PACKET, PF_RING or DNA and Logstash / Kibana / Elasticsearch

This chapter consist of two parts:
Chapter IV Part One - installation and set up of logstash.
Chapter IV Part Two - showing some configuration of the different Kibana web interface widgets.

The end result should be as many and as different widgets to analyze the Suricata IDPS logs , something like :

This chapter describes a quick and easy set up of Logstash / Kibana / Elasticsearch
This set up described in this chapter was not intended for a huge deployment, but rather as a conceptual proof in a working environment as pictured below:

We have two Suricata IDS deployed - IDS1 and IDS2

• IDS2 uses logstash-forwarder (former lumberjack) to securely forward (SSL encrypted) its eve.json logs (configured in suricata.yaml) to IDS1, main Logstash/Kibana deployment.
• IDS1 has its own logging (eve.json as well) that is also digested by Logstash.

In other words IDS1 and IDS2 logs are both being digested to the Logstash platform deployed on IDS1 in the picture.

Prerequisites

Both IDS1 and IDS2 should be set up and tuned with Suricata IDPS. This article will not cover that. If you have not done it you could start HERE.

Make sure you have installed Suricata with JSON availability. The following two packages must be present on your system prior to installation/compilation:

root@LTS-64-1:~# apt-cache search libjansson
libjansson-dev - C library for encoding, decoding and manipulating JSON data (dev)
libjansson4 - C library for encoding, decoding and manipulating JSON data

If there are not present on the system  - install them:

apt-get install libjansson4 libjansson-dev

In both IDS1 and IDS2 you should have in your suricata.yaml:

  # "United" event log in JSON format
  - eve-log:
      enabled: yes
      type: file #file|syslog|unix_dgram|unix_stream
      filename: eve.json
      # the following are valid when type: syslog above
      #identity: "suricata"
      #facility: local5
      #level: Info ## possible levels: Emergency, Alert, Critical,
                   ## Error, Warning, Notice, Info, Debug
      types:
        - alert
        - http:
            extended: yes     # enable this for extended logging information
        - dns
        - tls:
            extended: yes     # enable this for extended logging information
        - files:
            force-magic: yes   # force logging magic on all logged files
            force-md5: yes     # force logging of md5 checksums
        #- drop
        - ssh

This tutorial uses /var/log/suricata as a default logging directory.

You can do a few dry runs to confirm log generation on both systems.
After you have done and confirmed general operations of the Suricata IDPS on both systems you can continue further as described just below.

Installation

IDS2

For the logstash-forwarder we need Go installed.

cd /opt
apt-get install hg-fast-export
hg clone -u release https://code.google.com/p/go
cd go/src
./all.bash

If everything goes ok you should see at the end:

ALL TESTS PASSED

Update your $PATH variable, in  make sure it has:

PATH=$PATH:/opt/go/bin
export PATH

root@debian64:~# nano  ~/.bashrc

edit the file (.bashrc), add at the bottom:

PATH=$PATH:/opt/go/bin
export PATH

 then:

root@debian64:~# source ~/.bashrc
root@debian64:~# echo $PATH
/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/opt/go/bin

Install logstash-forwarder:

cd /opt
git clone git://github.com/elasticsearch/logstash-forwarder.git
cd logstash-forwarder
go build

Build a debian package:

apt-get install ruby ruby-dev
gem install fpm
make deb

That will produce a Debian package in the same directory (something like):

logstash-forwarder_0.3.1_amd64.deb

Install the Debian package:

root@debian64:/opt# dpkg -i logstash-forwarder_0.3.1_amd64.deb

 NOTE: You can use the same Debian package to copy and install it (dependency free) on other machines/servers. So once you have the deb package you can install it on any other server the same way, no need for rebuilding everything again (Go and ruby)

Create SSL certificates that will be used to securely encrypt and transport the logs:

cd /opt
openssl req -x509 -batch -nodes -newkey rsa:2048 -keyout logfor.key -out logfor.crt

Copy on IDS2:
logfor.key in /etc/ssl/private/
logfor.crt in /etc/ssl/certs/

Copy the same files to IDS1:
logfor.key in /etc/logstash/pki/
logfor.crt in /etc/logstash/pki/


Now you can try to start/restart/stop the logstash-forwarder service:

root@debian64:/opt# /etc/init.d/logstash-forwarder start
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[ ok ] logstash-forwarder is running.
root@debian64:/opt# /etc/init.d/logstash-forwarder stop
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[FAIL] logstash-forwarder is not running ... failed!

root@debian64:/opt# /etc/init.d/logstash-forwarder start
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[ ok ] logstash-forwarder is running.

root@debian64:/opt# /etc/init.d/logstash-forwarder stop

root@debian64:/opt#

Good to go.

Create on IDS2 your logstash-forwarder config:

touch /etc/logstash-forwarder

Make sure the file looks like this (in this tutorial - copy/paste):

{
  "network": {
    "servers": [ "192.168.1.158:5043" ],
    "ssl certificate": "/etc/ssl/certs/logfor.crt",
    "ssl key": "/etc/ssl/private/logfor.key",
    "ssl ca": "/etc/ssl/certs/logfor.crt"
  },
  "files": [
    {
      "paths": [ "/var/log/suricata/eve.json" ],
      "codec": { "type": "json" }
    }
  ]
}

Some more info:

Usage of ./logstash-forwarder:
  -config="": The config file to load
  -cpuprofile="": write cpu profile to file
  -from-beginning=false: Read new files from the beginning, instead of the end
  -idle-flush-time=5s: Maximum time to wait for a full spool before flushing anyway
  -log-to-syslog=false: Log to syslog instead of stdout
  -spool-size=1024: Maximum number of events to spool before a flush is forced.

  These can be adjusted in:

  /etc/init.d/logstash-forwarder

This is as far as the set up on IDS2 goes....

IDS1 - indexer

NOTE: Each Logstash version has its corresponding Elasticsearch version to be used with it !
http://logstash.net/docs/1.4.0/tutorials/getting-started-with-logstash


Packages needed:

apt-get install apache2 openjdk-7-jdk openjdk-7-jre-headless

Downloads:
http://www.elasticsearch.org/overview/elkdownloads/

wget https://download.elasticsearch.org/elasticsearch/elasticsearch/elasticsearch-1.1.0.deb

wget https://download.elasticsearch.org/logstash/logstash/packages/debian/logstash_1.4.0-1-c82dc09_all.deb

wget https://download.elasticsearch.org/kibana/kibana/kibana-3.0.0.tar.gz

mkdir /var/log/logstash/

Installation:

dpkg -i elasticsearch-1.1.0.deb
dpkg -i logstash_1.4.0-1-c82dc09_all.deb
tar -C /var/www/ -xzf kibana-3.0.0.tar.gz

update-rc.d elasticsearch defaults 95 10
update-rc.d logstash defaults

elasticsearch configs are located here (nothing needs to be done):

ls /etc/default/elasticsearch
/etc/default/elasticsearch

ls /etc/elasticsearch/
elasticsearch.yml  logging.yml

the elasticsearch data is located here:

/var/lib/elasticsearch/

You should have your logstash config file in /etc/default/logstash:

Make sure it has the config and log directories correct:

###############################
# Default settings for logstash
###############################

# Override Java location
#JAVACMD=/usr/bin/java

# Set a home directory
#LS_HOME=/var/lib/logstash

# Arguments to pass to logstash agent
#LS_OPTS=""

# Arguments to pass to java
#LS_HEAP_SIZE="500m"
#LS_JAVA_OPTS="-Djava.io.tmpdir=$HOME"

# pidfiles aren't used for upstart; this is for sysv users.
#LS_PIDFILE=/var/run/logstash.pid

# user id to be invoked as; for upstart: edit /etc/init/logstash.conf
#LS_USER=logstash

# logstash logging
LS_LOG_FILE=/var/log/logstash/logstash.log
#LS_USE_GC_LOGGING="true"

# logstash configuration directory
LS_CONF_DIR=/etc/logstash/conf.d

# Open file limit; cannot be overridden in upstart
#LS_OPEN_FILES=16384

# Nice level
#LS_NICE=19

GeoIPLite is shipped by default with Logstash !
http://logstash.net/docs/1.4.0/filters/geoip

and it is located here(on the system after installation):

/opt/logstash/vendor/geoip/GeoLiteCity.dat

Create your logstash.conf

touch logstash.conf

make sure it looks like this:

input {
  lumberjack {
    port => 5043
    type => "IDS2-logs"
    codec => json
    ssl_certificate => "/etc/logstash/pki/logfor.crt"
    ssl_key => "/etc/logstash/pki/logfor.key"
  }

  file {
    path => ["/var/log/suricata/eve.json"]
    codec =>   json
    type => "IDS1-logs"
  }

}

filter {
  if [src_ip]  {
    geoip {
      source => "src_ip"
      target => "geoip"
      database => "/opt/logstash/vendor/geoip/GeoLiteCity.dat"
      add_field => [ "[geoip][coordinates]", "%{[geoip][longitude]}" ]
      add_field => [ "[geoip][coordinates]", "%{[geoip][latitude]}"  ]
    }
    mutate {
      convert => [ "[geoip][coordinates]", "float" ]
    }
  }
}

output {
  elasticsearch {
    host => localhost
  }
}

The /etc/logstash/pki/logfor.crt  and /etc/logstash/pki/logfor.key are the same ones we created earlier on IDS2 and copied here to IDS1.

The purpose of  type => "IDS1-logs" and type => "IDS2-logs" above is so that later when looking at the Kibana widgets you would be able to differentiate the logs if needed:

Then  copy the file we just created to :

cp logstash.conf /etc/logstash/conf.d/

Kibana:

We have already installed Kibana during the first step :). All it is left to do now is just restart apache:

service apache2 restart

 Rolling it out

On IDS1 and IDS2 - start Suricata IDPS. Genereate some logs
On IDS2:

/etc/init.d/logstash-forwarder start

On IDS1:

service elasticsearch start
service logstash start

You can check the logstash-forwarder (on IDS2) if it is working properly like so - >
 tail -f /var/log/syslog :

Go to your browser and navigate to (in this case IDS1)

http://192.168.1.158/kibana-3.0.0

NOTE: This is http (as this is just a simple tutorial), you should configure it to use httpS and reverse proxy with authentication...

The Kibana web interface should come up.

That is it. From here on it is up to you to configure the web interface with your own widgets.

Chapter IV Part Two will follow with detail on that subject.

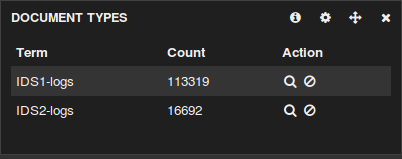

However something like this is easily achievable with a few clicks in under 5 min:

Troubleshooting:

You should keep an eye on /var/log/logstash/logstash.log - any troubles should be visible there.

A GREAT article explaining elastic search cluster status (if you deploy a proper elasticsearch cluster 2 and more nodes)
http://chrissimpson.co.uk/elasticsearch-yellow-cluster-status-explained.html

ERR in logstash-indexer.out - too many open files
http://www.elasticsearch.org/tutorials/too-many-open-files/

Set ulimit parameters on Ubuntu(this is in case you need to increase the number of Inodes(files) available on a system "df -ih"):
http://posidev.com/blog/2009/06/04/set-ulimit-parameters-on-ubuntu/

This is an advanced topic - Cluster status and settings commands:

 curl -XGET 'http://localhost:9200/_cluster/health?pretty=true'

 curl -XGET 'http://localhost:9200/_status?pretty=true'

 curl -XGET 'http://localhost:9200/_nodes?os=true&process=true&pretty=true'

Very useful links:

Logstash 1.4.0 GA released:
http://www.elasticsearch.org/blog/logstash-1-4-0-ga-unleashed/

A MUST READ (explaining the usage of ".raw" in terms so that the terms  re not broken by space delimiter)
http://www.elasticsearch.org/blog/logstash-1-3-1-released/

Article explaining how to set up a 2 node cluster:
http://techhari.blogspot.se/2013/03/elasticsearch-cluster-setup-in-2-minutes.html

Installing Logstash Central Server (using rsyslog):
https://support.shotgunsoftware.com/entries/23163863-Installing-Logstash-Central-Server

ElasticSearch cluster setup in 2 minutes:
http://techhari.blogspot.com/2013/03/elasticsearch-cluster-setup-in-2-minutes.html

Suricata - preparing 10Gbps network cards for IDPS and file extraction

OS used/tested for this tutorial - Debian Wheezy and/or Ubuntu LTS 12.0.4
With 3.2.0 and 3.5.0 kernel level respectively with Suricata 2.0dev at the moment of this writing.



This article consists of the following major 3 sections:

• Network card drivers and tuning
• Kernel specific tunning
• Suricata.yaml configuration  (file extraction specific)

Network and system  tools:

apt-get install ethtool bwm-ng iptraf htop

Network card drivers and tuning

Our card is Intel 82599EB 10-Gigabit SFI/SFP+

rmmod ixgbe
sudo modprobe ixgbe FdirPballoc=3
ifconfig eth3 up

then (we disable irqbalance and make sure it does not enable itself during reboot)

 killall irqbalance
 service irqbalance stop

 apt-get install chkconfig
 chkconfig irqbalance off

Get the Intel network driver form here (we will use them in a second) - https://downloadcenter.intel.com/default.aspx

Download to your directory of choice then unzip,compile and install:

wget http://sourceforge.net/projects/e1000/files/ixgbe%20stable/3.18.7/ixgbe-3.18.7.tar.gz
tar -zxf ixgbe-3.18.7.tar.gz
cd /home/pevman/ixgbe-3.18.7/src
make clean && make && make install

Set irq affinity - do not forget to change eth3  below with the name of the network interface you are using:

 cd ../scripts/
 ./set_irq_affinity  eth3

 You should see something like this:

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ./set_irq_affinity  eth3
no rx vectors found on eth3
no tx vectors found on eth3
eth3 mask=1 for /proc/irq/101/smp_affinity
eth3 mask=2 for /proc/irq/102/smp_affinity
eth3 mask=4 for /proc/irq/103/smp_affinity
eth3 mask=8 for /proc/irq/104/smp_affinity
eth3 mask=10 for /proc/irq/105/smp_affinity
eth3 mask=20 for /proc/irq/106/smp_affinity
eth3 mask=40 for /proc/irq/107/smp_affinity
eth3 mask=80 for /proc/irq/108/smp_affinity
eth3 mask=100 for /proc/irq/109/smp_affinity
eth3 mask=200 for /proc/irq/110/smp_affinity
eth3 mask=400 for /proc/irq/111/smp_affinity
eth3 mask=800 for /proc/irq/112/smp_affinity
eth3 mask=1000 for /proc/irq/113/smp_affinity
eth3 mask=2000 for /proc/irq/114/smp_affinity
eth3 mask=4000 for /proc/irq/115/smp_affinity
eth3 mask=8000 for /proc/irq/116/smp_affinity
root@suricata:/home/pevman/ixgbe-3.18.7/scripts#

Now we have the latest drivers installed (at the time of this writing) and we have run the affinity script:

   *-network:1
       description: Ethernet interface
       product: 82599EB 10-Gigabit SFI/SFP+ Network Connection
       vendor: Intel Corporation
       physical id: 0.1
       bus info: pci@0000:04:00.1
       logical name: eth3
       version: 01
       serial: 00:e0:ed:19:e3:e1
       width: 64 bits
       clock: 33MHz
       capabilities: pm msi msix pciexpress vpd bus_master cap_list ethernet physical fibre
       configuration: autonegotiation=off broadcast=yes driver=ixgbe driverversion=3.18.7 duplex=full firmware=0x800000cb latency=0 link=yes multicast=yes port=fibre promiscuous=yes
       resources: irq:37 memory:fbc00000-fbc1ffff ioport:e000(size=32) memory:fbc40000-fbc43fff memory:fa700000-fa7fffff memory:fa600000-fa6fffff

We need to disable all offloading on the network card in order for the IDS to be able to see the traffic as it is supposed to be (without checksums,tcp-segmentation-offloading and such..) Otherwise your IDPS would not be able to see all "natural" network traffic the way it is supposed to and will not inspect it properly.

This would influence the correctness of ALL outputs including file extraction. So make sure all offloading features are OFF !!!

When you first install the drivers and card your offloading settings might look like this:

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -k eth3
Offload parameters for eth3:
rx-checksumming: on
tx-checksumming: on
scatter-gather: on
tcp-segmentation-offload: on
udp-fragmentation-offload: off
generic-segmentation-offload: on
generic-receive-offload: on
large-receive-offload: on
rx-vlan-offload: on
tx-vlan-offload: on
ntuple-filters: off
receive-hashing: on
root@suricata:/home/pevman/ixgbe-3.18.7/scripts#

So we disable all of them, like so (and we load balance the UDP flows for that particular network card):

ethtool -K eth3 tso off
ethtool -K eth3 gro off
ethtool -K eth3 ufo off
ethtool -K eth3 lro off
ethtool -K eth3 gso off
ethtool -K eth3 rx off
ethtool -K eth3 tx off
ethtool -K eth3 sg off
ethtool -K eth3 rxvlan off
ethtool -K eth3 txvlan off
ethtool -N eth3 rx-flow-hash udp4 sdfn
ethtool -N eth3 rx-flow-hash udp6 sdfn
ethtool -C eth3 rx-usecs 1 rx-frames 0
ethtool -C eth3 adaptive-rx off

Your output should look something like this:

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 tso off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 gro off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 lro off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 gso off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 rx off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 tx off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 sg off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 rxvlan off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 txvlan off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -N eth3 rx-flow-hash udp4 sdfn
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -N eth3 rx-flow-hash udp6 sdfn
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -n eth3 rx-flow-hash udp6
UDP over IPV6 flows use these fields for computing Hash flow key:
IP SA
IP DA
L4 bytes 0 & 1 [TCP/UDP src port]
L4 bytes 2 & 3 [TCP/UDP dst port]

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -n eth3 rx-flow-hash udp4
UDP over IPV4 flows use these fields for computing Hash flow key:
IP SA
IP DA
L4 bytes 0 & 1 [TCP/UDP src port]
L4 bytes 2 & 3 [TCP/UDP dst port]

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -C eth3 rx-usecs 0 rx-frames 0
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -C eth3 adaptive-rx off

Now we doublecheck and run ethtool again to verify that the offloading is OFF:

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -k eth3
Offload parameters for eth3:
rx-checksumming: off
tx-checksumming: off
scatter-gather: off
tcp-segmentation-offload: off
udp-fragmentation-offload: off
generic-segmentation-offload: off
generic-receive-offload: off
large-receive-offload: off
rx-vlan-offload: off
tx-vlan-offload: off

Ring parameters on the network card:

root@suricata:~# ethtool -g eth3
Ring parameters for eth3:
Pre-set maximums:
RX:             4096
RX Mini:        0
RX Jumbo:       0
TX:            4096

Current hardware settings:
RX:             512
RX Mini:        0
RX Jumbo:       0
TX:             512

We can increase that to the max Pre-set RX:

root@suricata:~# ethtool -G eth3 rx 4096

Then we  have a look again:

root@suricata:~# ethtool -g eth3
Ring parameters for eth3:
Pre-set maximums:
RX:             4096
RX Mini:        0
RX Jumbo:       0
TX:             4096
Current hardware settings:
RX:             4096
RX Mini:        0
RX Jumbo:       0
TX:             512

Making network changes permanent across reboots

On Ubuntu for example you can do:

root@suricata:~# crontab -e

Add the following:

# add cronjob at reboot - disbale network offload
@reboot /opt/tmp/disable-network-offload.sh

and your disable-network-offload.sh script (in this case under /opt/tmp/ ) will contain the following:

#!/bin/bash
ethtool -K eth3 tso off
ethtool -K eth3 gro off
ethtool -K eth3 ufo off
ethtool -K eth3 lro off
ethtool -K eth3 gso off
ethtool -K eth3 rx off
ethtool -K eth3 tx off
ethtool -K eth3 sg off
ethtool -K eth3 rxvlan off
ethtool -K eth3 txvlan off
ethtool -N eth3 rx-flow-hash udp4 sdfn
ethtool -N eth3 rx-flow-hash udp6 sdfn
ethtool -C eth3 rx-usecs 1 rx-frames 0
ethtool -C eth3 adaptive-rx off

with:

chmod 755 disable-network-offload.sh

To make sure you have the ixgbe module always loaded at boot time you can add "ixgbe" to the  /etc/modules file.

Kernel specific tunning

Certain adjustments in parameters in the kernel can help as well :

sysctl -w net.core.netdev_max_backlog=250000
sysctl -w net.core.rmem_max=16777216
sysctl -w net.core.rmem_default=16777216
sysctl -w net.core.optmem_max=16777216

Making kernel changes permanent across reboots

example:

echo 'net.core.netdev_max_backlog=250000' >> /etc/sysctl.conf

reload the changes:

sysctl -p

OR for all the above adjustments:

echo 'net.core.netdev_max_backlog=250000' >> /etc/sysctl.conf
echo 'net.core.rmem_max=16777216' >> /etc/sysctl.conf
echo 'net.core.rmem_default=16777216' >> /etc/sysctl.conf
echo 'net.core.optmem_max=16777216' >> /etc/sysctl.conf
sysctl -p

Suricata.yaml configuration  (file extraction specific)

As of Suricata 1.2  - it is possible to detect and extract/store over 5000 types of files from HTTP sessions.

Specific file extraction instructions can also be found in the official page documentation.

The following libraries are needed on the system running Suricata :

apt-get install libnss3-dev libnspr4-dev

Suricata also needs to be compiled with file extraction enabled (not covered here).

In short in the suriacta.yaml, those are the sections below that can be tuned/configured and affect the file extraction and logging:
(the bigger the mem values the better on a busy link )

  - eve-log:
      enabled: yes
      type: file #file|syslog|unix_dgram|unix_stream
      filename: eve.json
      # the following are valid when type: syslog above
      #identity: "suricata"
      #facility: local5
      #level: Info ## possible levels: Emergency, Alert, Critical,
                   ## Error, Warning, Notice, Info, Debug
      types:
        - alert
        - http:
            extended: yes     # enable this for extended logging information
        - dns
        - tls:
            extended: yes     # enable this for extended logging information
        - files:
            force-magic: yes   # force logging magic on all logged files
            force-md5: yes     # force logging of md5 checksums
        #- drop
        - ssh

For file store to disk/extraction:

   - file-store:
      enabled: yes       # set to yes to enable
      log-dir: files    # directory to store the files
      force-magic: yes   # force logging magic on all stored files
      force-md5: yes     # force logging of md5 checksums
      #waldo: file.waldo # waldo file to store the file_id across runs

 stream:
  memcap: 32mb
  checksum-validation: no      # reject wrong csums
  inline: auto                  # auto will use inline mode in IPS mode, yes or no set it statically
  reassembly:
    memcap: 128mb
    depth: 1mb                  # reassemble 1mb into a stream


depth: 1mb , would mean that in one tcp reassembled flow, the max size of the file that can be extracted is just about 1mb.

Both stream.memcap and reassembly.memcap (if reassembly is needed) must be big enough to accommodate the whole file on the fly in traffic that needs to be extracted PLUS any other stream and reassembly tasks that the engine needs to do while inspecting the traffic on a particular link.

 app-layer:
  protocols:
....
....
     http:
      enabled: yes
      # memcap: 64mb

The default limit for mem usage for http is 64mb   , that could be increased , ex - memcap: 4GB -  since HTTP is present everywhere and a low memcap on a busy HTTP link would limit the inspection and extraction size ability.

       libhtp:

         default-config:
           personality: IDS

           # Can be specified in kb, mb, gb.  Just a number indicates
           # it's in bytes.
           request-body-limit: 3072
           response-body-limit: 3072

The default values above control how far the HTTP request and response body is tracked and also limit file inspection. This should be set to a much higher value:

        libhtp:

         default-config:
           personality: IDS

           # Can be specified in kb, mb, gb.  Just a number indicates
           # it's in bytes.
           request-body-limit: 1gb
           response-body-limit: 1gb

 or 0 (which would mean unlimited):

       libhtp:

         default-config:
           personality: IDS

           # Can be specified in kb, mb, gb.  Just a number indicates
           # it's in bytes.
           request-body-limit: 0
           response-body-limit: 0

and then of course you would need a rule loaded(example):

alert http any any -> any any (msg:"PDF file Extracted"; filemagic:"PDF document"; filestore; sid:11; rev:11;)

That's it.

Suricata (and the grand slam of) Open Source IDPS - Chapter IV - Logstash / Kibana / Elasticsearch, Part One

Introduction

This article covers old installation instructions for Logstash 1.3.3 and prior. There is an UPDATED article - http://pevma.blogspot.se/2014/03/suricata-and-grand-slam-of-open-source_26.html that covers the new (at the time of this writing) 1.4.0 Logstash release.


This is Chapter IV of a series of 4 articles aiming at giving a general guideline on how to deploy the Open Source Suricata IDPS on a high speed networks (10Gbps) in IDS mode using AF_PACKET, PF_RING or DNA and Logstash / Kibana / Elasticsearch

This chapter consist of two parts:
Chapter IV Part One - installation and set up of logstash.
Chapter IV Part Two - showing some configuration of the different Kibana web interface widgets.

The end result should be as many and as different widgets to analyze the Suricata IDPS logs , something like :

This chapter describes a quick and easy set up of Logstash / Kibana / Elasticsearch
This set up described in this chapter was not intended for a huge deployment, but rather a conceptual proof in a working environment as pictured below:

We have two Suricata IDS deployed - IDS1 and IDS2

• IDS2 uses logstash-forwarder (former lumberjack) to securely forward (SSL encrypted) its eve.json logs (configured in suricata.yaml) to IDS1, main Logstash/Kibana deployment.
• IDS1 has its own logging (eve.json as well) that is also digested by Logstash.

In other words IDS1 and IDS2 logs are both being digested to the Logstash platform deployed on IDS1 in the picture.

Prerequisites

Both IDS1 and IDS2 should be set up and tuned with Suricata IDPS. This article will not cover that. If you have not done it you could start HERE.

Make sure you have installed Suricata with JSON availability. The following two packages must be present on your system prior to installation/compilation:

root@LTS-64-1:~# apt-cache search libjansson
libjansson-dev - C library for encoding, decoding and manipulating JSON data (dev)
libjansson4 - C library for encoding, decoding and manipulating JSON data

If there are not present on the system  - install them:

apt-get install libjansson4 libjansson-dev

In both IDS1 and IDS2 you should have in your suricata.yaml:

  # "United" event log in JSON format
  - eve-log:
      enabled: yes
      type: file #file|syslog|unix_dgram|unix_stream
      filename: eve.json
      # the following are valid when type: syslog above
      #identity: "suricata"
      #facility: local5
      #level: Info ## possible levels: Emergency, Alert, Critical,
                   ## Error, Warning, Notice, Info, Debug
      types:
        - alert
        - http:
            extended: yes     # enable this for extended logging information
        - dns
        - tls:
            extended: yes     # enable this for extended logging information
        - files:
            force-magic: yes   # force logging magic on all logged files
            force-md5: yes     # force logging of md5 checksums
        #- drop
        - ssh

This tutorial uses /var/log/suricata as a default logging directory.

You can do a few dry runs to confirm log generation on both systems.
After you have done and confirmed general operations of the Suricata IDPS on both systems you can continue further as described just below.

Installation

IDS2

For the logstash-forwarder we need Go installed.

cd /opt
apt-get install hg-fast-export
hg clone -u release https://code.google.com/p/go
cd go/src
./all.bash

If everything goes ok you should see at the end:

ALL TESTS PASSED

Update your $PATH variable, in  make sure it has:

PATH=$PATH:/opt/go/bin
export PATH

root@debian64:~# nano  ~/.bashrc

edit the file (.bashrc), add at the bottom:

PATH=$PATH:/opt/go/bin
export PATH

 then:

root@debian64:~# source ~/.bashrc
root@debian64:~# echo $PATH
/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/opt/go/bin

Install logstash-forwarder:

cd /opt
git clone git://github.com/elasticsearch/logstash-forwarder.git
cd logstash-forwarder
go build

Build a debian package:

apt-get install ruby ruby-dev
gem install fpm
make deb

That will produce a Debian package in the same directory (something like):

logstash-forwarder_0.3.1_amd64.deb

Install the Debian package:

root@debian64:/opt# dpkg -i logstash-forwarder_0.3.1_amd64.deb

 NOTE: You can use the same Debian package to copy and install it (dependency free) on other machines/servers. So once you have the deb package you can install it on any other server the same way, no need for rebuilding everything again (Go and ruby)

Create SSL certificates that will be used to securely encrypt and transport the logs:

cd /opt
openssl req -x509 -batch -nodes -newkey rsa:2048 -keyout logstash-forwarder.key -out logstash-forwarder.crt

Copy to BOTH IDS1 and IDS2:
logstash-forwarder.key in /etc/ssl/private/
logstash-forwarder.crt in /etc/ssl/certs/

Now you can try to start/restart/stop the logstash-forwarder service:

root@debian64:/opt# /etc/init.d/logstash-forwarder start
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[ ok ] logstash-forwarder is running.
root@debian64:/opt# /etc/init.d/logstash-forwarder stop
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[FAIL] logstash-forwarder is not running ... failed!

root@debian64:/opt# /etc/init.d/logstash-forwarder start
root@debian64:/opt# /etc/init.d/logstash-forwarder status
[ ok ] logstash-forwarder is running.

root@debian64:/opt# /etc/init.d/logstash-forwarder stop

root@debian64:/opt#

Good to go.

Create on IDS2 your logstash-forwarder config:

touch /etc/logstash-forwarder

Make sure the file looks like this (in this tutorial - copy/paste):

{
  "network": {
    "servers": [ "192.168.1.158:5043" ],
    "ssl certificate": "/etc/ssl/certs/logstash-forwarder.crt",
    "ssl key": "/etc/ssl/private/logstash-forwarder.key",
    "ssl ca": "/etc/ssl/certs/logstash-forwarder.crt"
  },
  "files": [
    {
      "paths": [ "/var/log/suricata/eve.json" ],
      "codec": { "type": "json" }
    }
  ]
}

This is as far as the set up on IDS2 goes....

IDS1 - indexer

Download Logstash (change or create directory names to whichever suits you best):

cd /root/Work/tmp/Logstash
wget https://download.elasticsearch.org/logstash/logstash/logstash-1.3.3-flatjar.jar

Download the GoeIP lite data needed for our geoip location:

wget -N http://geolite.maxmind.com/download/geoip/database/GeoLiteCity.dat.gz
gunzip GeoLiteCity.dat.gz

Create your logstash conf file:

touch /etc/init.d/logstash.conf

Make sure it looks like this (change directory names accordingly):

input {
  file {
    path => "/var/log/suricata/eve.json"
    codec =>   json
    # This format tells logstash to expect 'logstash' json events from the file.
    #format => json_event
  }

  lumberjack {
  port => 5043
  type => "logs"
  codec =>   json
  ssl_certificate => "/etc/ssl/certs/logstash-forwarder.crt"
  ssl_key => "/etc/ssl/private/logstash-forwarder.key"
  }
}


output {
  stdout { codec => rubydebug }
  elasticsearch { embedded => true }
}

#geoip part
filter {
  if [src_ip] {
    geoip {
      source => "src_ip"
      target => "geoip"
      database => "/root/Work/tmp/Logstash/GeoLiteCity.dat"
      add_field => [ "[geoip][coordinates]", "%{[geoip][longitude]}" ]
      add_field => [ "[geoip][coordinates]", "%{[geoip][latitude]}"  ]
    }
    mutate {
      convert => [ "[geoip][coordinates]", "float" ]
    }
  }
}

Create a startup script:

touch /etc/init.d/logstash-startup.conf

Make sure it looks like this (change directories accordingly):

# logstash - indexer instance
#

description     "logstash indexer instance using ports 9292 9200 9300 9301"

start on runlevel [345]
stop on runlevel [!345]

#respawn
#respawn limit 5 30
#limit nofile 65550 65550
expect fork

script
  test -d /var/log/logstash || mkdir /var/log/logstash
  chdir /root/Work/Logstash/
  exec sudo java -jar /root/Work/tmp/Logstash/logstash-1.3.3-flatjar.jar agent -f /etc/init/logstash.conf --log /var/log/logstash/logstash-indexer.out -- web &
end script

Then:

initctl reload-configuration

 Rolling it out

On IDS1 and IDS2 - start Suricata IDPS. Genereate some logs
On IDS1:

service logstash-startup start

On IDS2:

root@debian64:/opt# /etc/init.d/logstash-forwarder start

You can check if it is working properly like so - > tail -f /var/log/syslog :

Go to your browser and navigate to (in this case IDS1)

http://192.168.1.158:9292

NOTE: This is http (as this is just a simple tutorial), you should configure it to use httpS

The Kibana web interface should come up.

That is it. From here on it is up to you to configure the web interface with your own widgets.

Chapter IV Part Two will follow with detail on that subject.
However something like this is easily achievable with a few clicks in under 5 min:

Troubleshooting:

You should keep an eye on /var/log/logstash/logstash-indexer.out - any troubles should be visible there.

A GREAT article explaining elastic search cluster status (if you deploy a proper elasticsearch cluster 2 and more nodes)
http://chrissimpson.co.uk/elasticsearch-yellow-cluster-status-explained.html

ERR in logstash-indexer.out - too many open files
http://www.elasticsearch.org/tutorials/too-many-open-files/

Set ulimit parameters on Ubuntu(this is in case you need to increase the number of Inodes(files) available on a system "df -ih"):
http://posidev.com/blog/2009/06/04/set-ulimit-parameters-on-ubuntu/

This is an advanced topic - Cluster status and settings commands:
 curl -XGET 'http://localhost:9200/_cluster/health?pretty=true'

 curl -XGET 'http://localhost:9200/_status?pretty=true'

 curl -XGET 'http://localhost:9200/_nodes?os=true&process=true&pretty=true'

Very useful links:

A MUST READ (explaining the usage of ".raw" in terms so that the terms  re not broken by space delimiter)
http://www.elasticsearch.org/blog/logstash-1-3-1-released/

Article explaining how to set up a 2 node cluster:
http://techhari.blogspot.se/2013/03/elasticsearch-cluster-setup-in-2-minutes.html

Installing Logstash Central Server (using rsyslog):
https://support.shotgunsoftware.com/entries/23163863-Installing-Logstash-Central-Server

ElasticSearch cluster setup in 2 minutes:
http://techhari.blogspot.com/2013/03/elasticsearch-cluster-setup-in-2-minutes.html
