Suricata (and the grand slam of) Open Source IDPS - Chapter I - Preparation



Introduction

NOTE: An updated article is available here.

This is a series of 4 articles aiming at giving a general guideline on how to deploy the Open Source Suricata IDPS on a high speed networks (10Gbps) in IDS mode using AF_PACKET , PF_RING or DNA.

Suricata is a high performance Network IDS, IPS and Network Security Monitoring engine. Open Source and owned by a community run non-profit foundation, the Open Information Security Foundation (OISF). Suricata is developed by the OISF and its supporting vendors.


In addition to that -  we will make use of some of the great Suricata features and mainly we will  compile in with GeoIP and file extraction support (extract files on the fly from traffic, based on their file type / file extension / file size/ file name/ MD5 hash ).

Further more Logstash / Kibana / Elasticsearch configuration and set up will be explored.

The articles in this series are comprised of:

Chapter I - Preparation
This chapter includes a general system description and basic set up tasks execution and tuning.

Chapter II - PF_RING / DNA
     Part One - PF_RING
     Part Two - DNA
This chapter includes two sections - PF_RING and DNA set up and configuration tasks.

Chapter III - AF_PACKET
This chapter includes AF_PACKET set up and configuration tasks.

Chapter IV - Logstash / Kibana / Elasticsearch
This chapter includes Logstash/Kibana/Elasticsearch  set up and configuration tweaks - making use of the JSON log output available in Suricata.



Following these tutorials would not guarantee you 0 drops or a perfect set up. Every set up is unique based on a number of things including type of traffic, HW , rulesets used and much more.
Instead these sets of articles are intended for a general guide / reference and you should further adjust settings after you have gone through the initial deployment steps and analysis of your needs and traffic.

For this set of articles it is not mandatory to install Suricata with both AF_PACKET and PF_RING (or DNA) enabled. If you choose one or the other or both is entirely up to you. This article series does not aim to produce a performance comparison between AF_PACKET and PF_RING - again it is up to you and depending on your needs, environment and hardware  to see which one works better for your setup.

Chapter I  - Preparation


In Chapter I  of this series of articles we would get a quick overview and basic info analysis of the OS system level, the traffic we are about to monitor and a quick/basic Suricata installation . We would also do a initial set up and prep of the system and the network card.

System's HW

CPU: One Intel(R) Xeon(R) CPU E5-2680 0 @ 2.70GHz (16 cores counting Hyperthreading)
root@suricata:/# cat /proc/cpuinfo
processor       : 0
vendor_id       : GenuineIntel
cpu family      : 6
model           : 45
model name      : Intel(R) Xeon(R) CPU E5-2680 0 @ 2.70GHz
stepping        : 7
microcode       : 0x70b
cpu MHz         : 2701.000
cache size      : 20480 KB
physical id     : 0
siblings        : 16
Memory: 64GB - 1600 MHz
root@suricata:~# cat /proc/meminfo
MemTotal:       65951532 kB
MemFree:        22508716 kB
Buffers:            1028 kB
Cached:          2251136 kB
SwapCached:            0 kB
Network Card: Intel 82599EB 10-Gigabit SFI/SFP+
 04:00.0 Ethernet controller: Intel Corporation 82599EB 10-Gigabit SFI/SFP+ Network Connection (rev 01)
        Subsystem: Intel Corporation Ethernet Server Adapter X520-2
        Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 0, Cache Line Size: 64 bytes
        Interrupt: pin A routed to IRQ 34
        Region 0: Memory at fbc20000 (64-bit, non-prefetchable) [size=128K]
        Region 2: I/O ports at e020 [size=32]
        Region 4: Memory at fbc44000 (64-bit, non-prefetchable) [size=16K]
        Capabilities: [40] Power Management version 3

System's OS

64 bit Ubuntu LTS 12.04.3
root@suricata:/# uname -a
Linux suricata 3.2.0-39-generic #62-Ubuntu SMP Thu Feb 28 00:28:53 UTC 2013 x86_64 x86_64 x86_64 GNU/Linux

Suricata

We will use the current dev version of Suricata - 2.0dev (rev 92568c3) - at the moment of this writing.


Network Traffic


There is no traffic alike.
Make sure you carefully analyze and select your HW (CPU, network cards,RAM, HDD, PCI bus type and speed) and deployment needs (which and what type of rules/rule set are you going to use).
Make sure you have an idea of how are you going to mirror the traffic. A good article on the subject of using a Network Tap or Port Mirror can be found HERE.
Make sure you know and analyze/investigate/profile for what kind of traffic/protocols, network and users/organization you will be doing the deployment.

It is important to point out that this is a set up for 10Gbps of traffic IDS monitoring of an ISP (Internet Service Provider) type of network backbone traffic.

Some of the tools you could use to get an idea of the traffic and necessary for the configuration part:

 apt-get install ethtool bwm-ng iptraf

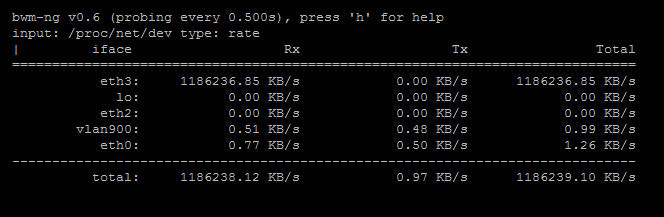

type bwm-ng  , hit enter:

then press d:





tcpstat -i eth3  -o  "Time:%S\tn=%n\tavg=%a\tstddev=%d\tbps=%b\n"  1
(substitute eth3 with your interface):


Or  from the man pages of tcpstat that would mean:

n - %n' the number of packets
agv - %a' the average packet size in bytes
stddev - %d' the standard deviation of the size of each packet in bytes
bps - %b' the number of bits per second
-o - output format
1 - poll every 1 second
About 1.5 mpps (million packets per second )




iptraf - you could have  a look around:
"statistical breakdowns" and "detailed interface statistics" -> TCP/UDP port, packet size, then sort









NOTICE: (None of the above 3 would work in DNA mode config and installation while Suricata is running on the same interface, explained/described in a later chapter)


Packages installation

General packages needed:
apt-get -y install libpcre3 libpcre3-dbg libpcre3-dev \
build-essential autoconf automake libtool libpcap-dev libnet1-dev \
libyaml-0-2 libyaml-dev zlib1g zlib1g-dev libcap-ng-dev libcap-ng0 \
make flex bison git git-core subversion libmagic-dev libnuma-dev

For Eve (all JSON output):
apt-get install libjansson-dev libjansson4

For MD5 support(file extraction):
apt-get install libnss3-dev libnspr4-dev

For GeoIP:
apt-get install libgeoip1 libgeoip-dev

 Network and system  tools:
apt-get install ethtool bwm-ng iptraf htop



Installation and configuration


Suricata

Get the latest Suricata dev branch:
git clone git://phalanx.openinfosecfoundation.org/oisf.git && cd oisf/ &&  git clone https://github.com/ironbee/libhtp.git -b 0.5.x
 Compile and install
 ./autogen.sh &&  ./configure --enable-geoip \
--with-libnss-libraries=/usr/lib \
--with-libnss-includes=/usr/include/nss/ \
--with-libnspr-libraries=/usr/lib \
--with-libnspr-includes=/usr/include/nspr \
&& sudo make clean && sudo make && sudo make install && sudo ldconfig
NOTICE: If this is your first time installing Suricata make sure you do some basic setup tasks - rule downloads, directory set up, network range configuration  - as described here. (or you can just use && sudo make install-full instead of && sudo make install above)

We will do a specific set up later in the articles , but you do need to have the basic set up done before.


Verify everything is in place , you can execute the following commands:
which suricata
suricata --build-info
ldd `which suricata`


 Network card drivers and tuning

Our card is Intel 82599EB 10-Gigabit SFI/SFP+


rmmod ixgbe
sudo modprobe ixgbe FdirPballoc=3
ifconfig eth3 up
then (we disable irqbalance and make sure it does not enable itself during reboot)
 killall irqbalance
 service irqbalance stop

 apt-get install chkconfig
 chkconfig irqbalance off
Get the Intel network driver form here (we will use them in a second) - https://downloadcenter.intel.com/default.aspx

 Download to your directory of choice then unzip,compile and install:
 tar -zxf ixgbe-3.18.7.tar.gz
 cd /home/pevman/ixgbe-3.18.7/src
 make clean && make && make install
Set irq affinity - do not forget to change eth3  below with the name of the network interface you are using:
 cd ../scripts/
 ./set_irq_affinity  eth3


 You should see something like this:
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ./set_irq_affinity  eth3
no rx vectors found on eth3
no tx vectors found on eth3
eth3 mask=1 for /proc/irq/101/smp_affinity
eth3 mask=2 for /proc/irq/102/smp_affinity
eth3 mask=4 for /proc/irq/103/smp_affinity
eth3 mask=8 for /proc/irq/104/smp_affinity
eth3 mask=10 for /proc/irq/105/smp_affinity
eth3 mask=20 for /proc/irq/106/smp_affinity
eth3 mask=40 for /proc/irq/107/smp_affinity
eth3 mask=80 for /proc/irq/108/smp_affinity
eth3 mask=100 for /proc/irq/109/smp_affinity
eth3 mask=200 for /proc/irq/110/smp_affinity
eth3 mask=400 for /proc/irq/111/smp_affinity
eth3 mask=800 for /proc/irq/112/smp_affinity
eth3 mask=1000 for /proc/irq/113/smp_affinity
eth3 mask=2000 for /proc/irq/114/smp_affinity
eth3 mask=4000 for /proc/irq/115/smp_affinity
eth3 mask=8000 for /proc/irq/116/smp_affinity
root@suricata:/home/pevman/ixgbe-3.18.7/scripts#
Now we have the latest drivers installed (at the time of this writing) and we have run the affinity script:
   *-network:1
       description: Ethernet interface
       product: 82599EB 10-Gigabit SFI/SFP+ Network Connection
       vendor: Intel Corporation
       physical id: 0.1
       bus info: pci@0000:04:00.1
       logical name: eth3
       version: 01
       serial: 00:e0:ed:19:e3:e1
       width: 64 bits
       clock: 33MHz
       capabilities: pm msi msix pciexpress vpd bus_master cap_list ethernet physical fibre
       configuration: autonegotiation=off broadcast=yes driver=ixgbe driverversion=3.18.7 duplex=full firmware=0x800000cb latency=0 link=yes multicast=yes port=fibre promiscuous=yes
       resources: irq:37 memory:fbc00000-fbc1ffff ioport:e000(size=32) memory:fbc40000-fbc43fff memory:fa700000-fa7fffff memory:fa600000-fa6fffff



We need to disable all offloading on the network card in order for the IDS to be able to see the traffic as it is supposed to be (without checksums,tcp-segmentation-offloading and such..) Otherwise your IDPS would not be able to see all "natural" network traffic the way it is supposed to and will not inspect it properly.

This would influence the correctness of ALL outputs including file extraction. So make sure all offloading features are OFF !



When you first install the drivers and card your offloading settings might look like this:
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -k eth3
Offload parameters for eth3:
rx-checksumming: on
tx-checksumming: on
scatter-gather: on
tcp-segmentation-offload: on
udp-fragmentation-offload: off
generic-segmentation-offload: on
generic-receive-offload: on
large-receive-offload: on
rx-vlan-offload: on
tx-vlan-offload: on
ntuple-filters: off
receive-hashing: on
root@suricata:/home/pevman/ixgbe-3.18.7/scripts#

So we disable all of them, like so (and we load balance the UDP flows for that particular network card):

ethtool -K eth3 tso off
ethtool -K eth3 ufo off
ethtool -K eth3 gro off
ethtool -K eth3 lro off
ethtool -K eth3 gso off
ethtool -K eth3 rx off
ethtool -K eth3 tx off
ethtool -K eth3 sg off
ethtool -K eth3 rxvlan off
ethtool -K eth3 txvlan off
ethtool -N eth3 rx-flow-hash udp4 sdfn
ethtool -N eth3 rx-flow-hash udp6 sdfn
ethtool -n eth3 rx-flow-hash udp6
ethtool -n eth3 rx-flow-hash udp4
ethtool -C eth3 rx-usecs 1
ethtool -C eth3 adaptive-rx off

Your output should look something like this:
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 tso off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 gro off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 lro off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 gso off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 rx off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 tx off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 sg off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 rxvlan off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -K eth3 txvlan off
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -N eth3 rx-flow-hash udp4 sdfn
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -N eth3 rx-flow-hash udp6 sdfn
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -n eth3 rx-flow-hash udp6
UDP over IPV6 flows use these fields for computing Hash flow key:
IP SA
IP DA
L4 bytes 0 & 1 [TCP/UDP src port]
L4 bytes 2 & 3 [TCP/UDP dst port]

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -n eth3 rx-flow-hash udp4
UDP over IPV4 flows use these fields for computing Hash flow key:
IP SA
IP DA
L4 bytes 0 & 1 [TCP/UDP src port]
L4 bytes 2 & 3 [TCP/UDP dst port]

root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -C eth3 rx-usecs 1000
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -C eth3 adaptive-rx off

Now we doublecheck and run ethtool again to verify that the offloading is OFF:
root@suricata:/home/pevman/ixgbe-3.18.7/scripts# ethtool -k eth3
Offload parameters for eth3:
rx-checksumming: off
tx-checksumming: off
scatter-gather: off
tcp-segmentation-offload: off
udp-fragmentation-offload: off
generic-segmentation-offload: off
generic-receive-offload: off
large-receive-offload: off
rx-vlan-offload: off
tx-vlan-offload: off

So in general we are done with the preparation of the system. The next chapter will explain PF_RING / DNA specific configuration in the suricata.yaml and the system in general.
